AM664ILW

View PDF

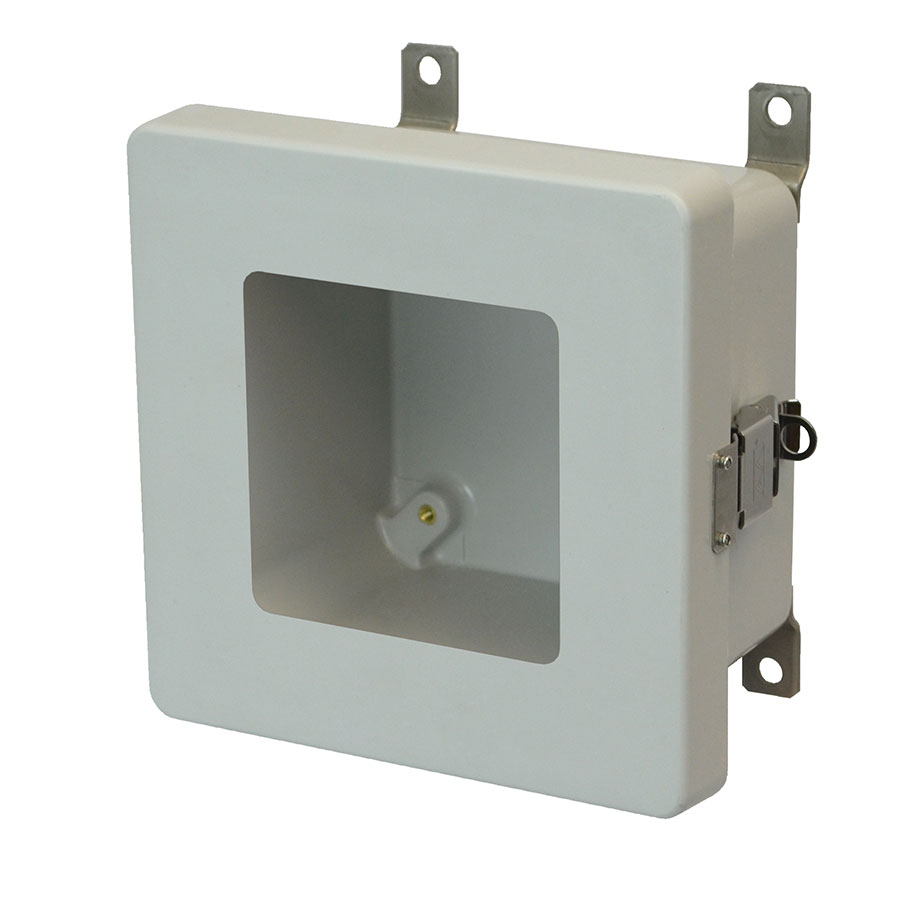

AM Series fiberglass wall mount enclosure assembly with hinged window cover and stainless steel snap latch

  • Enclosure Type: JIC Size
  • Cover Type: Opaque with Viewing Window
  • Closure Type: metal snap latch
  • Mounting Description: Stainless steel feet fastened to back side brass inserts
  • Height: 155 mm 6.102 in
  • Width: 155 mm 6.102 in
  • Depth: 106 mm 4.173 in
  • Usable Depth: 96 mm 3.78 in
  • Volume: 156 cu mm 0.01 cu. in.

Product Info

  • Brand: AM Series
  • Carton Quantity: 1
  • Carton Weight: 0.748 kg 1.65 lbs
  • Country of Origin: India
  • Color: Gray (RAL 7035) with clear window
  • Material: Fiberglass Reinforced Polyester - compression molded SMC box and cover
  • Additional Materials: 304 stainless steel external hardware (hinges/latches/fasteners), 304 Stainless Steel Mounting brackets, 304 Stainless Steel internal hardware, Brass inserts, Neoprene gasket
  • Features:

    Non-corrosive, non- conductive, UV protected, Flameretardent, Impact resistant, Chemical Resistant, Leight Weight with lower installation cost, Negligible maintenance cost, easy to modify and Loger life cycle compare to Steel/Polycarbonate. Rigid design with Back panel inserts plus Stainless Steel wall mounting brackets and neoprene gasket encased in a continous channel on the cover.

  • Application:

    Enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    IEC-62208 , IEC-60695-2-11:2000, IEC-60529:2013-08, IEC-60068-2-2:2007, IEC-62262-2002, UL-94 5VA, RoHS Compliant

Description

AM Series fiberglass wall mount enclosure assembly with hinged window cover and stainless steel snap latch

Additional information

Weight 1.65 lbs
