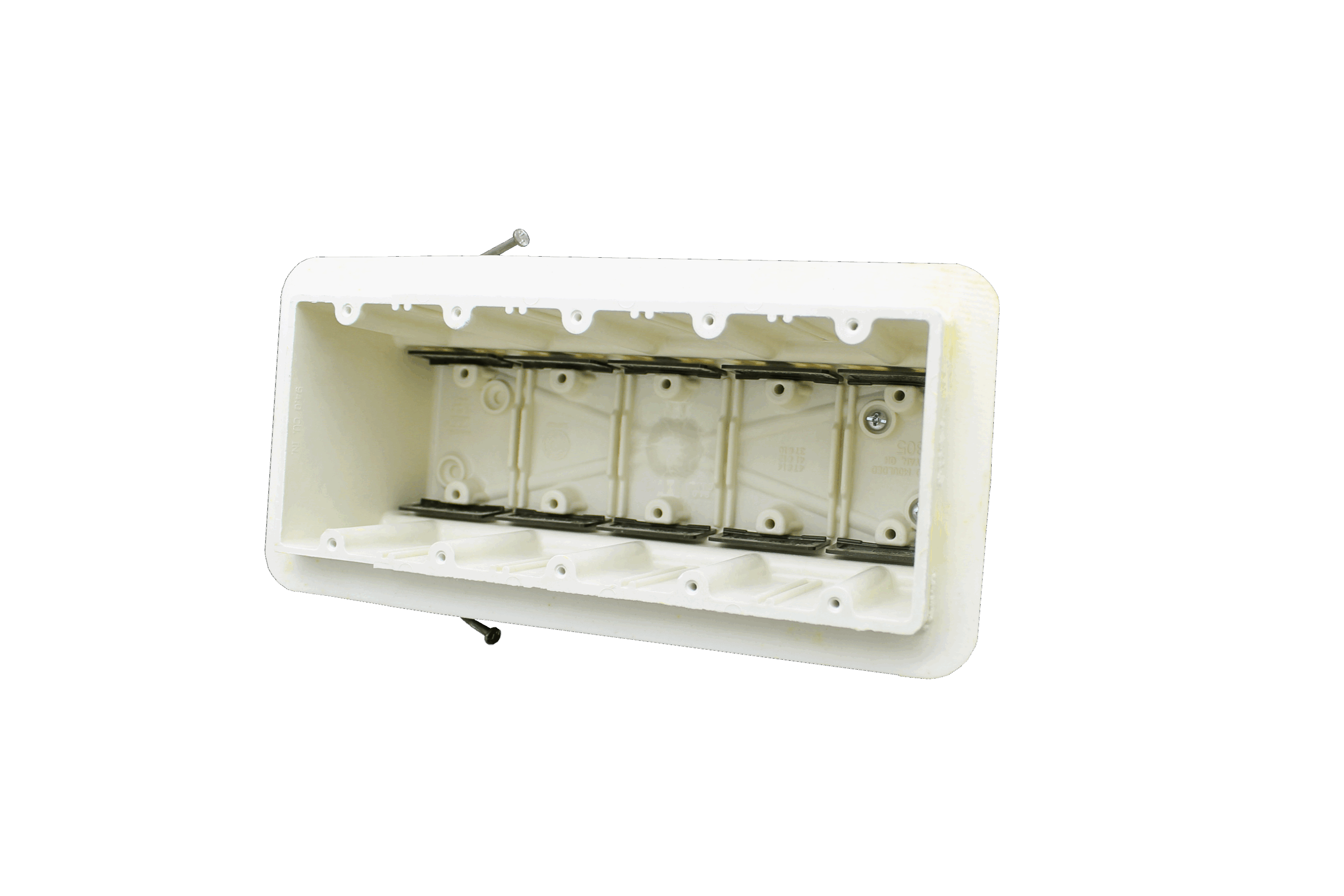

Five gang electrical box for use with nonmetallic sheathed cable

  • Carton Quantity: 6
  • Mounting Description: Angled mid nails
  • Box Type: Wall - Switch/Receptacle
  • Box Features: Speed "K" nonmetallic clamps, Nails, Air-sealed flange (energy efficient)
  • Installation Type: New Work
  • Height: 3-3/4 in
  • Width: 9-5/16 in
  • Depth: 3-9/16 in
  • Volume: 94 cu. in.
  • Number of Gangs: 5

Product Info

  • Brand: Vapor Seal
  • UPC: 85339180111
  • UNSPSC: 39121308
  • Carton Weight: 9 lbs 4.082 kg
  • Country of Origin: United States of America
  • Color: Off white
  • Patents: U.S. Patent No. 6,908,003 B2
  • Material: Fiberglass reinforced polyester
  • Additional Materials: Carbon steel fasteners, Polyvinyl chloride clamps, Polyurethane flange
  • Features:

    Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed “K” Clamps factory installed

  • Application:

    New work residential construction 2 HR fire resistive walls – air-sealed electrical boxes for envelope walls in Energy Star homes

  • Standards:

    ANSI / UL 514C: File No. E30594

    NEMA OS 4 – Energy Efficient Air-Sealed Boxes for Electrical Applications

  • Fire Classification:

    Fire Test of Building Construction Materials
    ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)

    Note: Products must also be certified to: ANSI / UL 514C

    Fire Resistance Classification in Wall Assemblies 2-Hours or less
    Shall be separated by a horizontal distance of not less than 24 inches

    Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Description

Five gang electrical box for use with nonmetallic sheathed cable

Additional information

Weight9 lbs
Dimensions17 × 12 × 8 in
