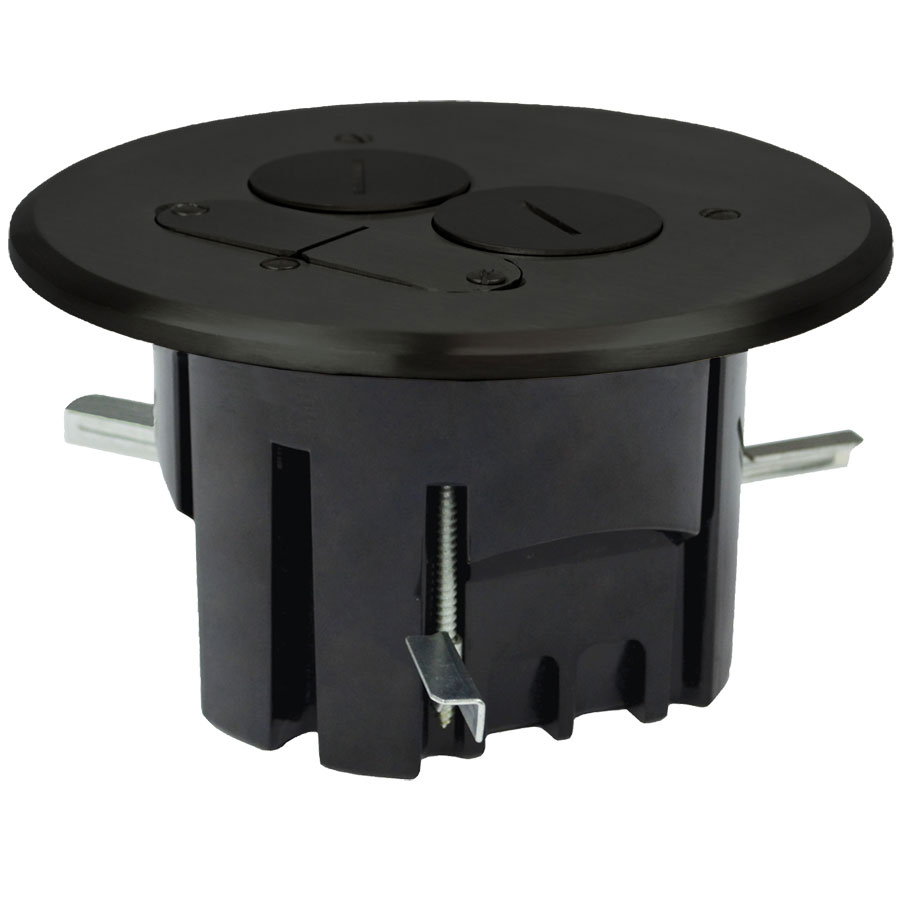

Round floor box assembly with a dark bronze plated cover for line and low voltage installations

  • Carton Quantity: 6
  • Mounting Description: Metal wing brackets/nonmetal flange floor or ceiling compression
  • Box Type: Floor
  • Installation Type: New Work, Old Work
  • Width: 3.94 in
  • Depth: 3.43 in
  • Volume: 19.5 cu. in.

Product Info

  • UPC: 85339990734
  • UNSPSC: 39121307
  • Carton Weight: 12 lbs 5.443 kg
  • Country of Origin: China
  • Color: Black
  • Patents: U.S. Patent No. 6,365,831 B1
  • Material: Polycarbonate box and brass cover
  • Additional Materials: Closed cell rubber gasket, Galvanized steel dust plate with plated carbon steel fasteners, Nitrile O-ring, Nonmetallic pop-in cable clamp, Plated carbon steel fasteners
  • Cover Finish: Dark Bronze
  • Features:

    Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, one tamper resistant receptacle, provision for adding two low voltage keystone plugins, and a simple exterior shape for easy cut-in application

  • Application:

    Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.

  • Standards:

    ANSI / UL514C: File No. QCMZ.E30594

    FLOOR BOX 714L

     WARNING – PROP 65
    Click here for more information!

Description

Round floor box assembly with a dark bronze plated cover for line and low voltage installations

Additional information

Weight12 lbs
Dimensions9 × 25 × 10 in
