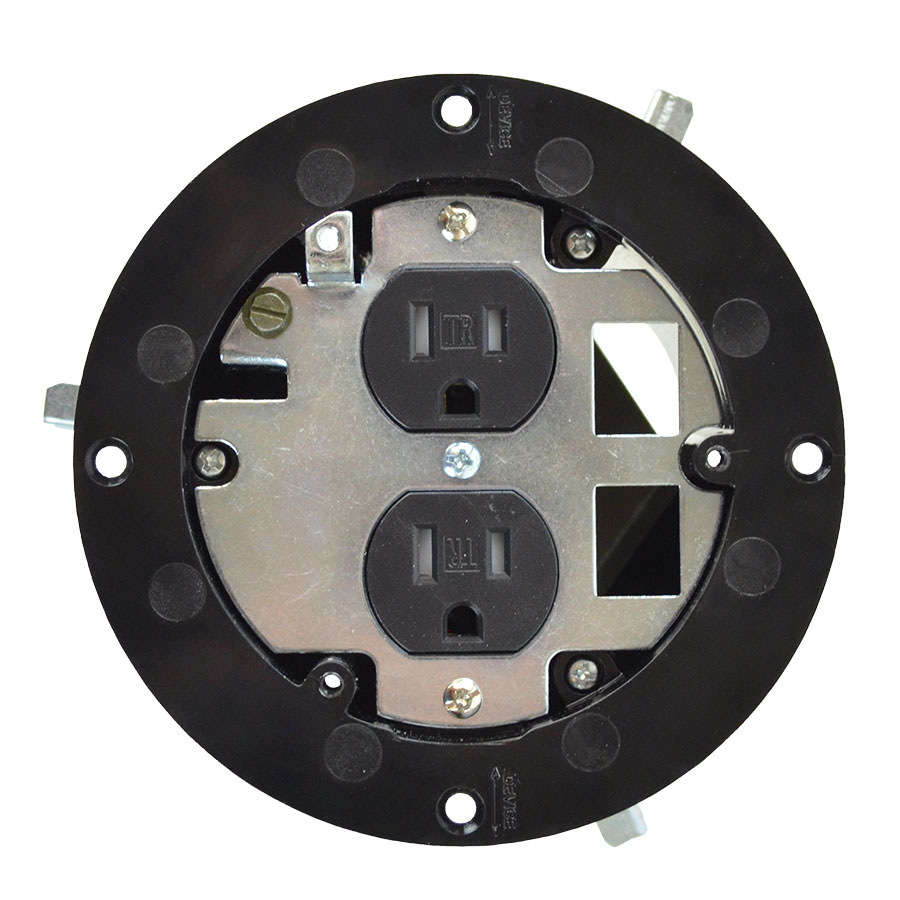

Round floor box rough-in kit assembly with duplex style device and openings for line and low voltage installations. *Will work with all FB-4 covers

  • Carton Quantity: 6
  • Mounting Description: Metal wing brackets/nonmetal flange floor or ceiling compression
  • Box Type: Floor
  • Installation Type: New Work, Old Work
  • Width: 3.94 in
  • Depth: 3.43 in
  • Volume: 19.5 cu. in.

Product Info

  • UPC: 85339984610
  • UNSPSC: 39121307
  • Carton Weight: 5 lbs 2.268 kg
  • Country of Origin: China
  • Color: Black
  • Patents: U.S. Patent No. 6,365,831 B1
  • Material: Polycarbonate box
  • Additional Materials: Galvanized steel dust plate with plated carbon steel fasteners, Nitrile O-ring, Nonmetallic pop-in cable clamp, Plated carbon steel fasteners
  • Features:

    Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application

  • Application:

    Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.

  • Standards:

    ANSI / UL514C: File No. QCMZ.E30594

    FLOOR BOX 714L

     WARNING – PROP 65
    Click here for more information!

Description

Round floor box rough-in kit assembly with duplex style device and openings for line and low voltage installations. *Will work with all FB-4 covers

Additional information

Weight5 lbs
Dimensions14 × 10 × 4 in
