SBFB-1DB

View PDF

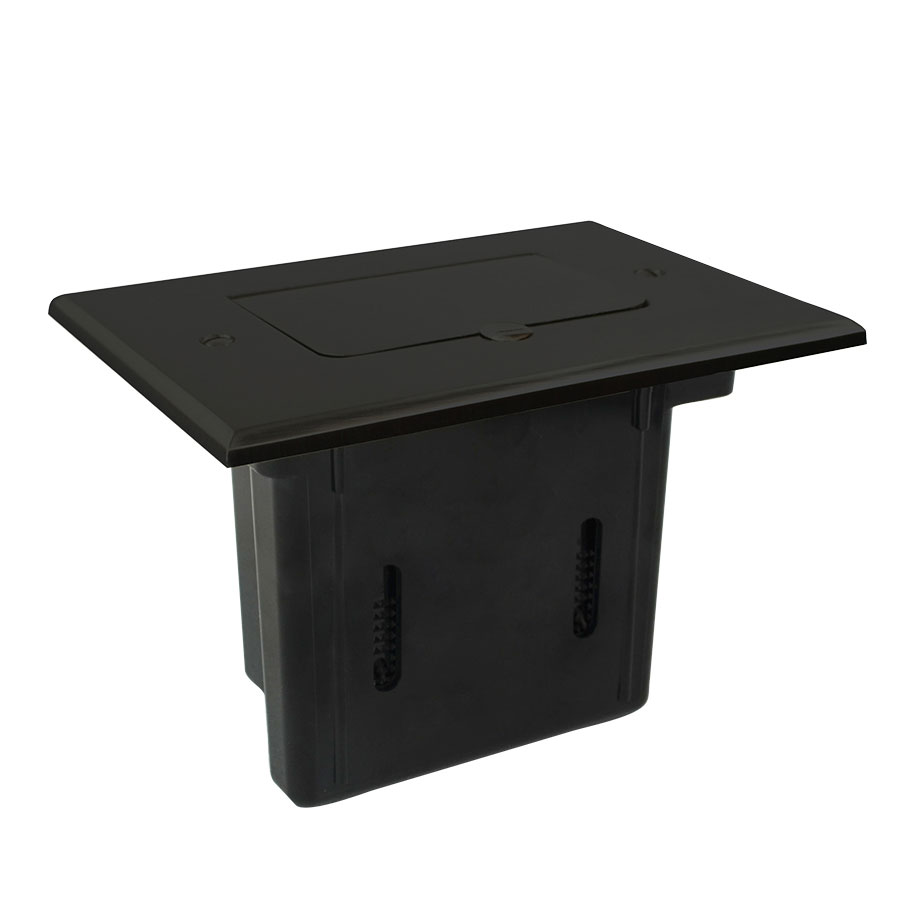

SLIDERBOX Adjustable single gang rectangular floor box assembly with a dark bronze plated flip-lid cover for a decorative style device

  • Carton Quantity: 6
  • Mounting Description: 2 Screws
  • Box Type: Floor
  • Box Features: Adjustable box (SLIDERBOX®), Screws
  • Installation Type: New Work, Old Work
  • Height: 4.4 in
  • Width: 2.5 in
  • Depth: 3.5 in
  • Volume: 24 cu. in.
  • Number of Gangs: 1

Product Info

  • UPC: 85339975298
  • UNSPSC: 39121307
  • Carton Weight: 10 lbs 4.536 kg
  • Country of Origin: China
  • Color: Black
  • Patents: U.S. Patent No. 6,365,831 B1, U.S. Patent No. 7,855,338
  • Material: Polycarbonate box and brass cover
  • Additional Materials: Closed cell rubber gasket, Galvanized steel dust plate with plated carbon steel fasteners, Plated carbon steel fasteners
  • Cover Finish: Dark Bronze
  • Features:

    Designed for use in wood floor construction and can be installed with multiple floor substrate materials, meets scrub-water exclusion test, tamper resistant receptacle, simple exterior shape for easy cut-in application. Maximum adjustability for flooring substrate thickness up to 2″.

  • Application:

    Floor box assembly for residential wood floor cut-in application for use with nonmetallic sheathed cable.  Used in areas of the home with large floor space openings where additional electric outlets are required by National Electrical Code to minimize long extension cord runs.

  • Standards:

    ANSI / UL514C: File No. QCMZ.E30594

    FLOOR BOX 714L

     WARNING – PROP 65
    Click here for more information!

Description

SLIDERBOX Adjustable single gang rectangular floor box assembly with a dark bronze plated flip-lid cover for a decorative style device

Additional information

Weight 10 lbs
Dimensions 24 × 9 × 10 in
