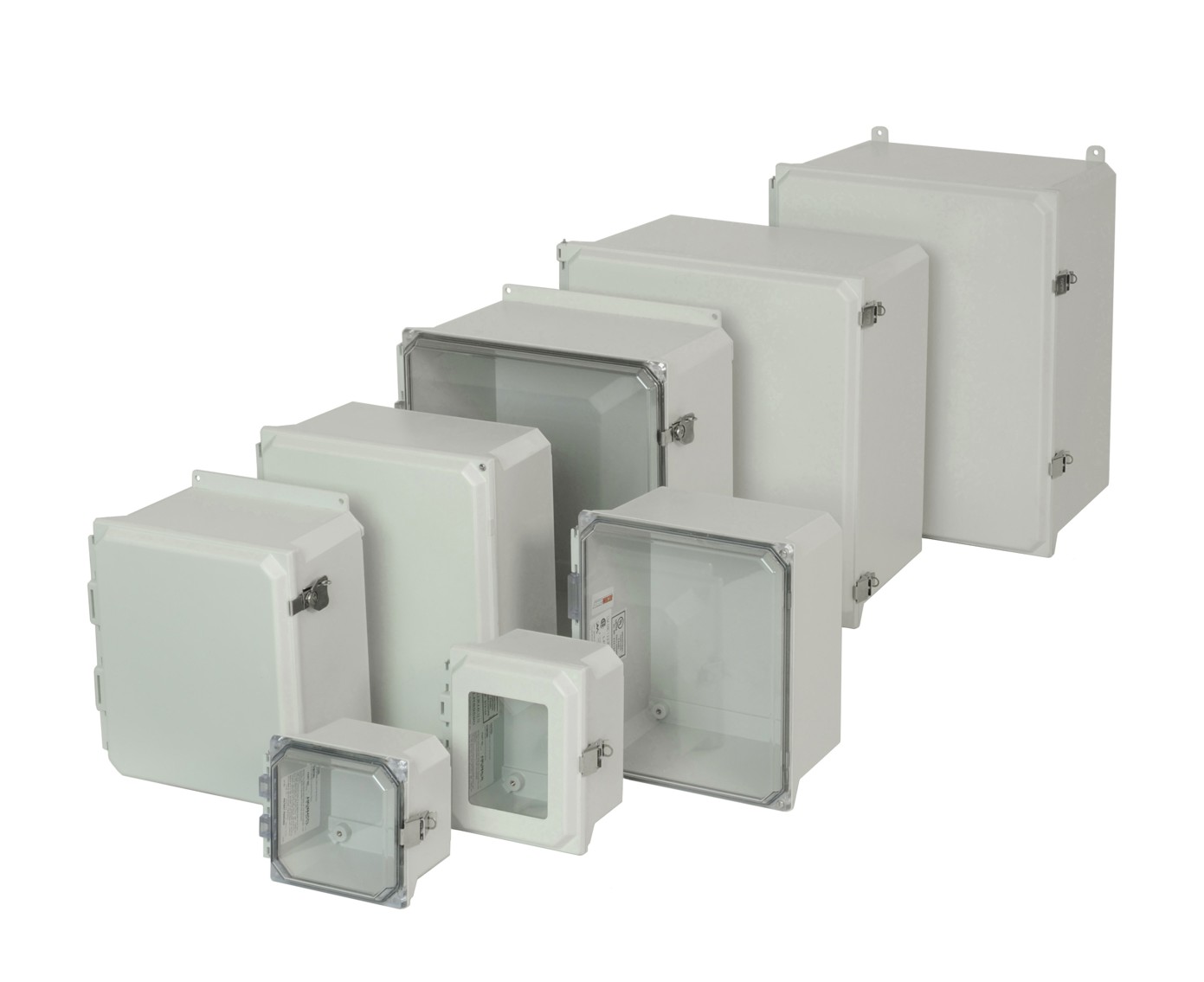

ULTRALINE® Fiberglass Enclosures

ULTRALINE® AMU Series FRP (fiberglass reinforced polyester) enclosures come standard with patented mounting options, including an out-of-the-box mounting flange or adjustable mounting feet to cover various mounting configurations.  Featuring molded latch keepers, a tongue and groove seal design, and a flange design that can be retrofit to competition, ULTRALINE is the ultimate in nonmetallic enclosures.  A clear polycarbonate cover option is also available for instrumentation applications where critical electronic equipment must be visible and protected from the elements.

BROWSE ULTRALINE® ENCLOSURES

Features & Benefits



  • Eight Sizes ranging from 6x6x4 through 20x16x10
  • Patented (US Pat #7,572,975) multi-mounting capability
  • Out-of-the-box flange design – factory installed
  • Flange mount hole pattern match “VJ”, “J”, and “A” series
    competitive foot prints
  • Optional foot mount brackets for multi-directional mounting
  • Capable of mounting vertically or horizontally
  • Mounting dimensions molded into the enclosure base
  • Durable polycarbonate feet/flanges withstand cracking during wall mount assembly
  • Feet and Flanges act as an enclosure pad on uneven surfaces
    without allowing it to be drawn down and bind, or crack
  • Feet and Flange pads also allow air space between the
    enclosure and a warm machine or mounting wall
  • Cover/Base design is flush, aesthetically pleasing, modern
    architecture
  • Clear polycarbonate instrumentation cover where critical
    electronic equipment must be visible and protected from the
    elements
  • Solid/opaque covers come with a drill point pattern inside for
    hole modifications when required
  • Molded hinge and latch keeper designs eliminate wall
    penetrations
  • Tongue and groove, formed-in-place gasket system achieves
    NEMA Type 4X rating
  • Allied Moulded Ultraguard® fiberglass reinforced polyester
    material formulation

Modifications & Accessories



  • Custom holes and cutouts
  • Custom size polycarbonate viewing windows
  • Molded-in color matches
  • Hinge installed on short side
  • EMI/RFI shielding
  • Factory-supplied silk screening

Accessories include:
  • Back panels available in painted carbon steel, aluminum, fiberglass, or galvannealed steel
  • UV resistant polycarbonate viewing windows
