AM483612L

View PDF

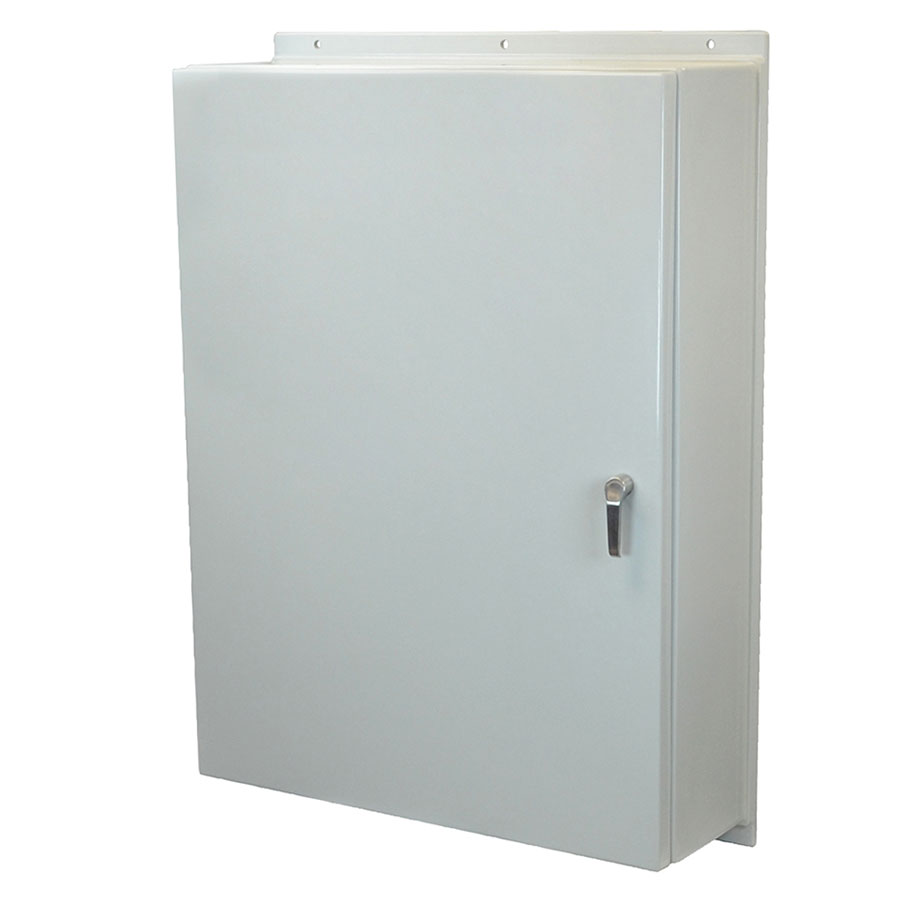

48"x36"x12" Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latches

AM483612L

$3,086.80

Fiberglass enclosure with hinged cover and snap latch

  • Availability:

    For up-to-date delivery on this product, please contact us at 1-800-722-2679 or sales@alliedmoulded.com

  • Enclosure Type: Wall Cabinets
  • Cover Type: Opaque
  • Closure Type: Metal Snap Latch
  • Mounting Description: Molded flange
  • Height: 48.25 in 1225.55 mm
  • Width: 36.25 in 920.75 mm
  • Depth: 10.14 in 257.556 mm
  • Usable Depth: 10.27 in 260.858 mm
  • Volume: 20429 cu. in. 334772065.9 cu mm

Product Info

  • Brand: Empire Series
  • UPC: 85339940043
  • UNSPSC: 39121324
  • Carton Quantity: 1
  • Carton Weight: 87 lbs 39.463 kg
  • Country of Origin: United States of America
  • Color: Gray (RAL 7035)
  • Material: ULTRAGUARD® Fiberglass reinforced polyester - compression molded SMC box and Cover
  • Additional Materials: 316 stainless steel external hardware (hinges/latches/fasteners), EPDM Spring loaded gasket, Plated alloy steel bonding fastener, Plated carbon steel internal hardware
  • Features:

    Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel. Rigid design with back panel inserts plus molded-in mounting flanges and a spring loaded gasket system.

  • Application:

    Enclose and protect electrial and electronic controls, instruments or components for indoor and outdoor applications. Especially well suited for extreme temperature and corrosive environments.

  • Standards:

    UL 508A, UL 50 and UL 50E Types 1, 4, and 4X; File No. E120175

    Complies with:
    1. EN / IEC 60204-1 and 60529 Type IP66
    2. RoHS directive



     WARNING – PROP 65
    Click here for more information!

Online Order Notice

Outside the USA? Please call 1-800-722-2679 to talk with one of our customer service specialists! Online orders for USA customers only.

Description

48″x36″x12″ Empire Series fiberglass wall mount enclosure assembly with hinged cover and stainless-steel snap latches

Additional information

Weight 87 lbs
Dimensions 16 × 41 × 57 in
